Scopes modding quickcard

[Romulien]

Hi,

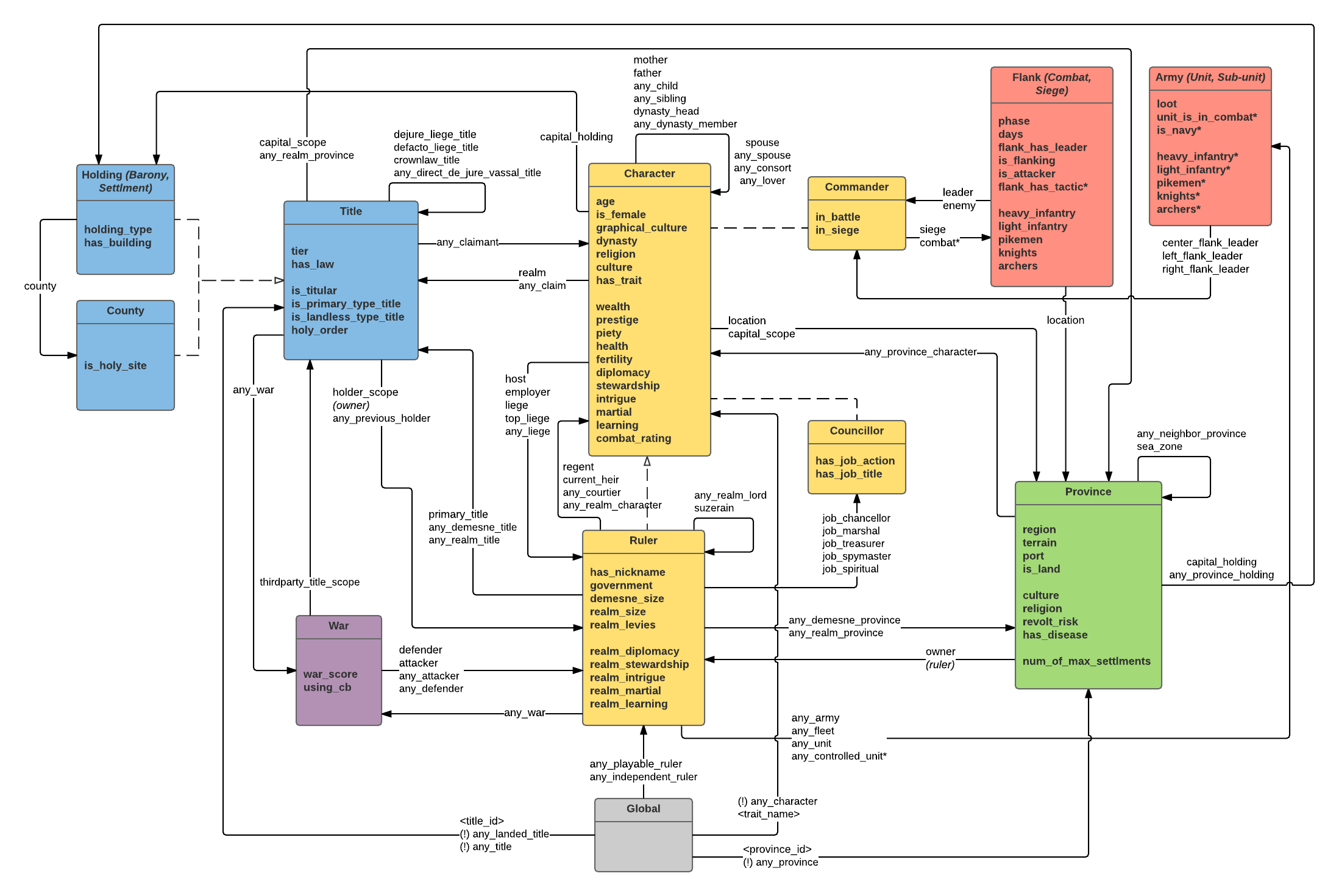

I've created this quickcard, in particular to help new modders. It describes the 6 types of scopes that can be scoped to (titles, characters, provinces, wars, flanks, armies) + global, and some triggers available on each.

Legend:
(!) CPU heavy, use with care
(scope) deprecated variant, rarely used in vanilla
* coming in some next patch (cf https://forum.paradoxplaza.com/forum/index.php?threads/captains-log.774248/page-32#post-22178309)

Description of each scopes can be found on http://www.ckiiwiki.com/Scopes#List_of_scopes
I've filtered out some specific scope triggers (related to plots, nomads, ....) to keep things "simple".

I'd appreciate your feedback if you spot some errors, or something important missing, so I can correct. Then I'll upload it to the wiki.

Edit: added dedicated "Commander" entity.



[Zarathustra_the]

As I recall you do not every want to use any_army in an effect scope. It has in my experience causes crashes when used in effect scopes. I am not sure if that has been corrected, but I remember distinctly that the game does not like that being used in effects You do however want to use it in triggers and limits



[jursamaj]

A useful companion to this would sumarize which on_actions yield which ROOT, FROM, FROMFROM, etc.



[Romulien]

Little update with society member, artifacts, removing "coming in some next patch" etc.

Let me know if you think something is terribly wrong, or something important is missing (I'm almost reaching max complexity with free lucidchart account though, so won't be able to add much )



[olupien]

Amazing work! Thanks



[jursamaj]

I'm almost reaching max complexity with free lucidchart account though

Have you checked out the completely free yEd?



[Romulien]

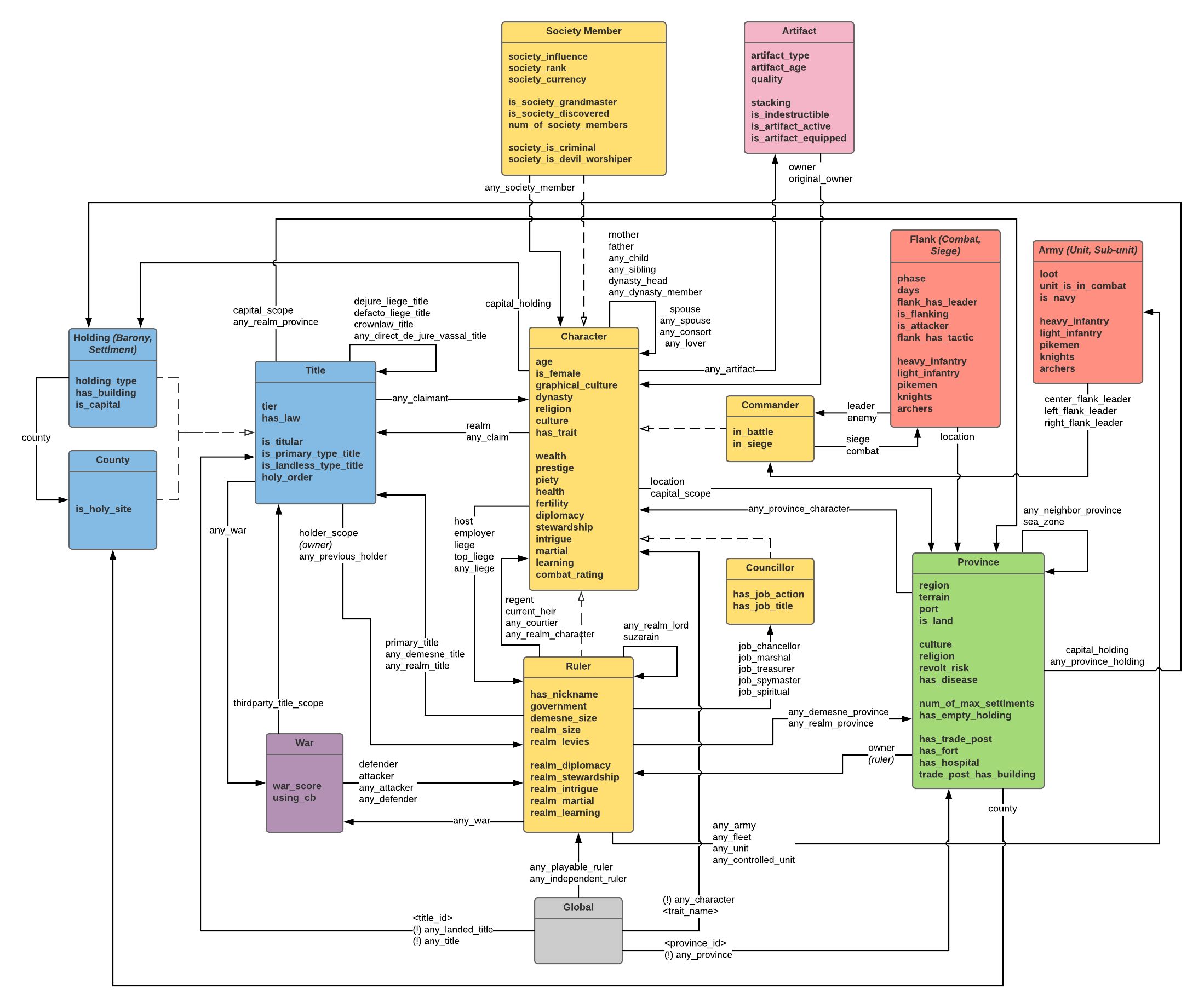

I've uploaded a slightly updated version with bloodlines and few minor fixes:

Have you checked out the completely free yEd?

Haven't tried it yet ! Though now it's maxed out, so I probably will if there's a need for another update
