[Linux]Graphics of the map won't load

[pyrignis]

I purchased CKII and the republic DLC yesterday on steam but so far haven't been able to play : the graphics of the map won't load. Here are some screenshots to better explain what it looks like :

The steam forum also have a post for this bug.

System settings : Ubuntu 12.10 x86_64, intel HD4000.

Has this happened to anyone here? Has anyone got a fix?



[unmerged(636746)]

The Problem does not occur with the latest NVidia driver on a GTX 470. I'm also using Ubuntu 12.10 x86_64. It seems to be a common problem with Intel and open source ATI drivers.



[ShX]

It's happens because CK2 main shader which violate GLSL standard.

Has this happened to anyone here? Has anyone got a fix?

Yes, here I posted the bug:
http://forum.paradoxplaza.com/forum/showthread.php?658210-GLSL-Bad-macro-in-standardfuncsgfx.fxh

You need to remove two first and last line of shader file.
Than you will be allowed to see the map.



[pyrignis]

You need to remove two first and last line of shader file.

Thank you very much but where is this file?



[ShX]

Sorry, file is here:
/home/$username/Steam/SteamApps/common/Crusader Kings II/gfx/FX/standardfuncsgfx.fxh

But I not sure if game will be enough playable on HD4000.
If you haven't high resolution that should be okay, but probably you need to edit settings file:

/Documents/Paradox Interactive/Crusader Kings II/settings.txt

And disable trees and water rendering.



[pyrignis]

Perfect! Thank you very much!



[CzarnyLod]

Has anyone succeeded to fix this bug with Intel HD 3000 graphics? I followed your directions (editing standardfuncsgfx.fxh and settings.txt files), but I obtained the following (changing resolution & going to window mode didn't produce any effect):



P.S. I use Fedora 17.



[ShX]

P.S. I use Fedora 17.

Did you tried to get latest Mesa version?

Has anyone succeeded to fix this bug with Intel HD 3000 graphics?

I don't think there is way to make game really playable on Intel HD, because even if you see the map there will be few problems like black banners.

There is screenshot from my other thread. CK2 on Ubuntu with HD3000:
http://storage9.static.itmages.ru/i/13/0115/h_1358277382_4934885_f8fc77b151.png
So with proper driver you should get something like that.

And please check or post here your log file, paradox give lot of debug information in logs.



[CzarnyLod]

The drivers seem up to date. Do you mean sytsem.log file?



[ShX]

The drivers seem up to date. Do you mean sytsem.log file?

error.log, this file usually contain rendering errors.



[CzarnyLod]

Content of my error.log file:

[/var/lib/jenkins/jenkins-tmp/jenkins-tmp/workspace/CK2-Release-Linux/clausewitzII/clausewitzlib/sound.cpp:232]: Sound generic_click_04 not found.
[/var/lib/jenkins/jenkins-tmp/jenkins-tmp/workspace/CK2-Release-Linux/clausewitzII/clausewitzlib/sound.cpp:232]: Sound generic_click_04 not found.
[/var/lib/jenkins/jenkins-tmp/jenkins-tmp/workspace/CK2-Release-Linux/clausewitzII/clausewitzlib/sound.cpp:232]: Sound generic_click_04 not found.
[/var/lib/jenkins/jenkins-tmp/jenkins-tmp/workspace/CK2-Release-Linux/clausewitzII/clausewitzlib/sound.cpp:232]: Sound generic_click_04 not found.


AND HERE TERMINAL OUTPUT:

Game update: AppID 203770 "Crusader Kings II", ProcID 28197, IP 0.0.0.0:0
ERROR: ld.so: object 'gameoverlayrenderer.so' from LD_PRELOAD cannot be preloaded: ignored.
Setting breakpad minidump AppID = 203770
Steam_SetMinidumpSteamID: Caching Steam ID: 76561198063239448 [API loaded no]
ERROR: ld.so: object 'gameoverlayrenderer.so' from LD_PRELOAD cannot be preloaded: ignored.
ERROR: ld.so: object 'gameoverlayrenderer.so' from LD_PRELOAD cannot be preloaded: ignored.
saving roaming config store to 'sharedconfig.vdf'
roaming config store 2 saved successfully
ERROR: ld.so: object 'gameoverlayrenderer.so' from LD_PRELOAD cannot be preloaded: ignored.
ERROR: ld.so: object 'gameoverlayrenderer.so' from LD_PRELOAD cannot be preloaded: ignored.
Installing breakpad exception handler for appid(gameoverlayui)/version(20130114145737_client)
Installing breakpad exception handler for appid(gameoverlayui)/version(1.0_client)
Installing breakpad exception handler for appid(gameoverlayui)/version(1.0_client)
Installing breakpad exception handler for appid(gameoverlayui)/version(1.0_client)

(gameoverlayui:28215): Gtk-WARNING **: Unable to locate theme engine in module_path: "clearlooks",

(gameoverlayui:28215): Gtk-WARNING **: Unable to locate theme engine in module_path: "clearlooks",

(gameoverlayui:28215): Gtk-WARNING **: Unable to locate theme engine in module_path: "clearlooks",

(gameoverlayui:28215): Gtk-WARNING **: Unable to locate theme engine in module_path: "clearlooks",

(gameoverlayui:28215): Gtk-WARNING **: Unable to locate theme engine in module_path: "clearlooks",

(gameoverlayui:28215): Gtk-WARNING **: Unable to locate theme engine in module_path: "clearlooks",

(gameoverlayui:28215): Gtk-WARNING **: Unable to locate theme engine in module_path: "clearlooks",

(gameoverlayui:28215): Gtk-WARNING **: Unable to locate theme engine in module_path: "clearlooks",

(gameoverlayui:28215): Gtk-WARNING **: Unable to locate theme engine in module_path: "clearlooks",

(gameoverlayui:28215): Gtk-WARNING **: Unable to locate theme engine in module_path: "clearlooks",

(gameoverlayui:28215): Gtk-WARNING **: Unable to locate theme engine in module_path: "clearlooks",

(gameoverlayui:28215): Gtk-WARNING **: Unable to locate theme engine in module_path: "clearlooks",

(gameoverlayui:28215): Gtk-WARNING **: Unable to locate theme engine in module_path: "clearlooks",

(gameoverlayui:28215): Gtk-WARNING **: Unable to locate theme engine in module_path: "clearlooks",

(gameoverlayui:28215): Gtk-WARNING **: Unable to locate theme engine in module_path: "clearlooks",

(gameoverlayui:28215): Gtk-WARNING **: Unable to locate theme engine in module_path: "clearlooks",

(gameoverlayui:28215): Gtk-WARNING **: Unable to locate theme engine in module_path: "clearlooks",
Gtk-Message: Failed to load module "pk-gtk-module"
Gtk-Message: Failed to load module "canberra-gtk-module"
[0117/133909:WARNINGroxy_service.cc(646)] PAC support disabled because there is no system implementation



[CzarnyLod]

Fixed. I had to install libtxc_dxtn. Since I'm running 64-bit Linux, I actually needed the 32-bit version of this library to fix the game.



[CzarnyLod]

P.S. As for the flags & skields, deleting flagfiles.txt file from gfx folder helped. However, it seems you have to do it each time before you start the game.



[ShX]

P.S. As for the flags & skields, deleting flagfiles.txt file from gfx folder helped.

Please, could you upload few screenshots of your current game? To see what works and what not.



[CzarnyLod]

Please, could you upload few screenshots of your current game? To see what works and what not.

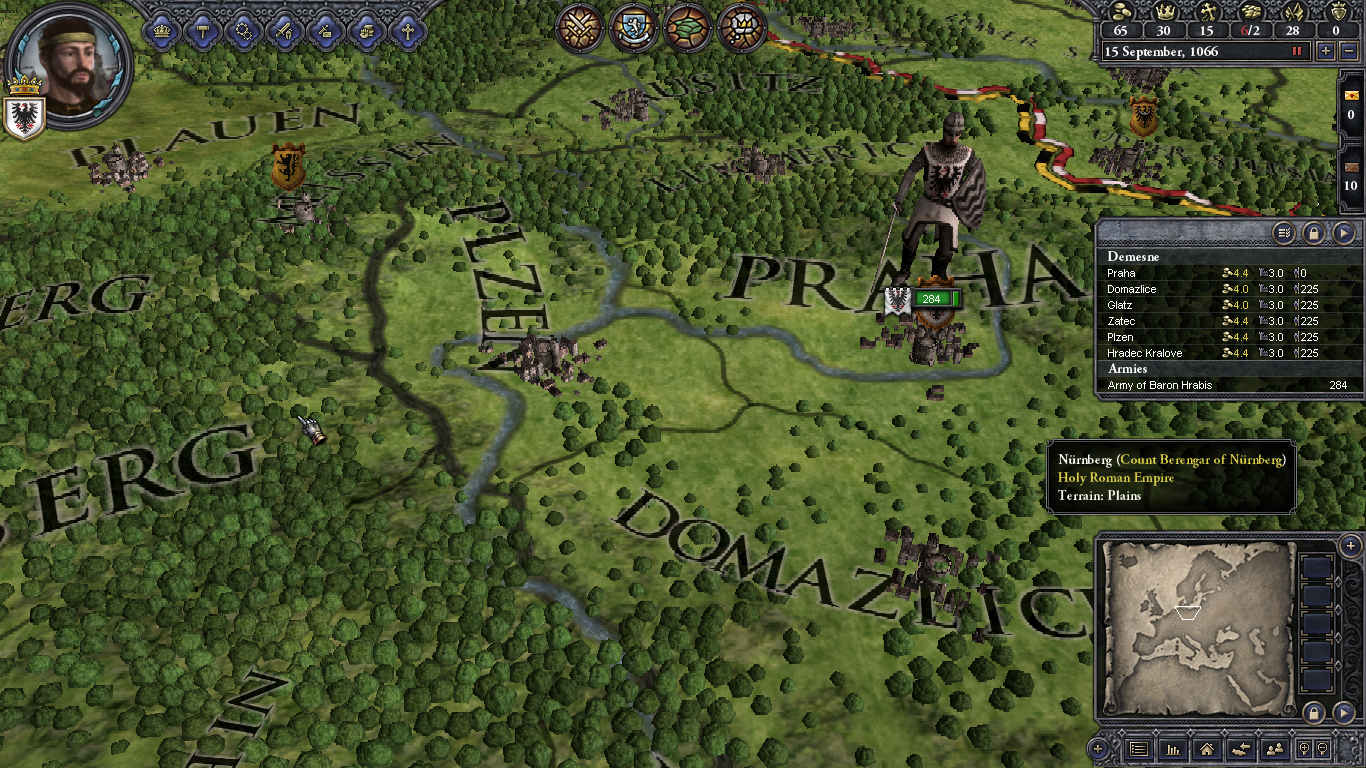

The graphics is a little smeary, but no previous problems detected.

P.S. For some reason (does this account have an upload limit?) I couldn't post the full sized file.



[ShX]

I couldn't post the full sized file.

What do you mean? Image you posted is 1366x768, isn't it full size?

After you lick on thumbnail i see a big screenshot.



[CzarnyLod]

I had to compress it in GIMP. It's my second picture uploaded here. The first one went through in full size (~1Mb), I had to shrink the second one to 200 kB or it didn't upload.



[Azeotrope]

Hello,
I have a similar problem to CzarnyLod's, but the solution (install libtxc_dxtn) didn't work for me.
Here is the terminal output :

[S_API FAIL] SteamAPI_Init() failed; SteamAPI_IsSteamRunning() failed.
[S_API FAIL] SteamAPI_Init() failed; unable to locate a running instance of Steam, or a local steamclient.dll.
warning: failed to translate tgsi opcode DDX to LLVM
Failed to translate shader from TGSI to LLVM
EE si_state.c:1949 si_shader_select - Failed to build shader variant (type=1) -22

Any idea ?

Edit: I guess it was a problem with the radeonsi driver, switching to the proprietary one fixed it.
