Guess That Plane!

[scroggin]

That's impressive research . I just had a memory of the Tempest having a few nose configurations (because they tried a few engines with it), and the rest of the body seemed to fit, and a memory was clawing at the back of my mind - I can't claim any greater insight than that.

I notice the rego matches so its a positive.



[Imminentstorm]

Saab B-18B

I'll accept it. The 18A had two Wright R-1830 engines, the 18B was fitted with DB 605 engines. This particular plane is a Saab T 18B which was armed with one 57mm and 2 20mm cannons plus air to ground rockets, serving in a close air support/ground attack role.

For this one, the plane in question is the one all the way to the left. The 3 in line on the right are Curtiss SBC Helldivers, but the last on on the left is a different model from a different manufacturer.



[Amur_Tiger]

It looks like a tempest the round engine cowl would indicate a radial engine.The Tempest II had a centaurus IV radial engine. That photo seems to have 6 exhaust ports on the side but the centaurus was an18 cylinder engine. It had me beat but then I saw this

Two Tempest Vs, EJ518 and NV768, were fitted with Napier Sabre Vs and experimented with several different Napier-made annular radiators, with which they resembled Tempest IIs. This configuration proved to generate less drag than the standard "chin" radiator, contributing to an improvement in the maximum speed of some 11 to 14 mph.[22]NV768was later fitted with a ducted spinner, similar to that fitted to the Fw 190 V1.[11][23]

Very good! I have a particular weakness for the Sabre engine and this was probably the best implementation of that crazy thing. The key visual hint is to notice that you've got a line of exhausts along either side of the engine, typical for inline engines and really hard to imagine working with a radial.



[Cpack]

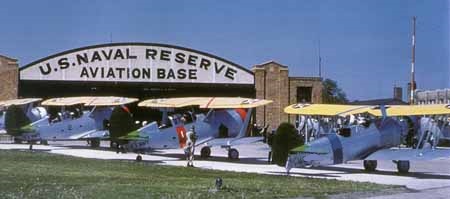

For this one, the plane in question is the one all the way to the left. The 3 in line on the right are Curtiss SBC Helldivers, but the last on on the left is a different model from a different manufacturer.

View attachment 167046

Hard to see and not really my time frame....have to guess:

1. Martin BM-1 or BM-2
2. Consolidated XB2Y Prototype
3. Great Lakes BG
4. Chance-Vought SBU-1
5. ???



[Imminentstorm]

Hard to see and not really my time frame....have to guess:

1. Martin BM-1 or BM-2
2. Consolidated XB2Y Prototype
3. Great Lakes BG
4. Chance-Vought SBU-1
5. ???

No Cigar yet. The pic is a little fuzzy. Here is another pic of the same model:

Clue: It was also at times fitted with floats.



[Cpack]

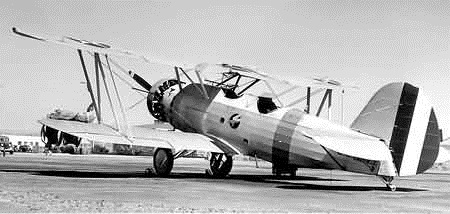

No Cigar yet. The pic is a little fuzzy. Here is another pic of the same model:

View attachment 167213
Clue: It was also at times fitted with floats.

I give up....looks close to a Naval Aircraft Factory N3N



[SchwarzKatze]

No Cigar yet. The pic is a little fuzzy. Here is another pic of the same model:

View attachment 167213
Clue: It was also at times fitted with floats.

Berliner-Joyce OJ? The engine there looks very much like a Pratt & Whitney Wasp (as seen on Peashooters), and OJ sports a Wasp Junior.



[Imminentstorm]

Berliner-Joyce OJ? The engine there looks very much like a Pratt & Whitney Wasp (as seen on Peashooters), and OJ sports a Wasp Junior.

Close enough for me . It is the Berliner-Joyce OJ-2. About 39 were manufactured in 1933 and served in the US Navy as catapult-launched spotter planes on cruisers. The Engine was a Pratt & Whitney R-985-A Wasp Junior.



[Smiffus]

Let's try to throw a curveball. Guess the plane.



[Imminentstorm]

Let's try to throw a curveball. Guess the plane.

Nice! This one was interesting, took some Google work to get it. It appears this is a line drawing for a Heinkel He-100 D-1. I'm guessing the curveball is that this pic was used to identify the HE-113 which didn't exist. The He-100s were dressed up as the fictional HE-113 for propaganda/misinformation purposes.



[Smiffus]

Nice! This one was interesting, took some Google work to get it. It appears this is a line drawing for a Heinkel He-100 D-1. I'm guessing the curveball is that this pic was used to identify the HE-113 which didn't exist. The He-100s were dressed up as the fictional HE-113 for propaganda/misinformation purposes.

Well done! You can read more about it in this article: http://www.theguardian.com/uk/2000/oct/22/1



[Cpack]

How about this



[Imminentstorm]

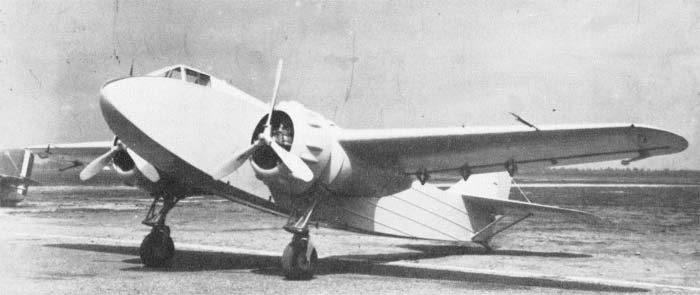

How about thisView attachment 168223

This looks to be an Italian Savoia-Marchetti SM.85 Dive Bomber.

Here is one from a nation I don't think has been represented in this thread yet:



[Cpack]

This looks to be an Italian Savoia-Marchetti SM.85 Dive Bomber.

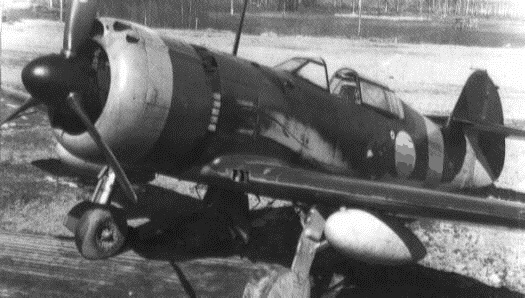

Here is one from a nation I don't think has been represented in this thread yet:
View attachment 168304

Finnish Myrsky II
