CK2 graphic error

[jti0219]

This error appears when starting game.

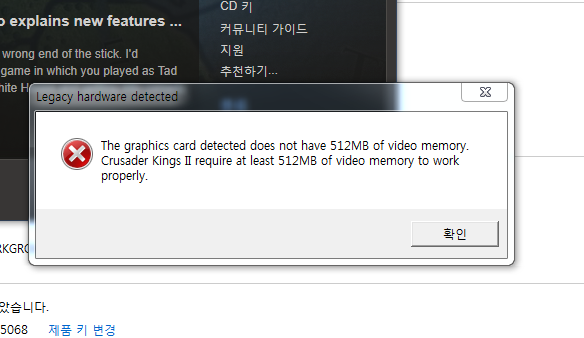

Error message

Legacy hardware detected
---------------------------
The graphics card detected does not have 512MB of video memory.
Crusader Kings II require at least 512MB of video memory to work properly.
---------------------------


I Bought CK2 yesterday and played vanilla(no mod, no dlc) via steam. what should I do?


My PC information

CPU : AMD Phenom II X4 955
RAM : 8GB
graphic card : AMD hd 5770, 512mb graphic memory.
catalyst version : 13.9

ps. I am not so good at English. Please understand.

ps2. Dxdiag information

------------------
System Information
------------------
Time of this report: 11/13/2013, 00:08:06
Machine name: NPINESS-PC
Operating System: Windows 7 Home Premium K 64-bit (6.1, Build 7601) Service Pack 1 (7601.win7sp1_gdr.130828-1532)
Language: Korean (Regional Setting: Korean)
System Manufacturer: Gigabyte Technology Co., Ltd.
System Model: GA-MA770T-US3
BIOS: Award Modular BIOS v6.00PG
Processor: AMD Phenom(tm) II X4 955 Processor (4 CPUs), ~3.2GHz
Memory: 8192MB RAM
Available OS Memory: 8190MB RAM
Page File: 2997MB used, 13379MB available
Windows Dir: C:\Windows
DirectX Version: DirectX 11
DX Setup Parameters: Not found
User DPI Setting: Using System DPI
System DPI Setting: 96 DPI (100 percent)
DWM DPI Scaling: Disabled
DxDiag Version: 6.01.7601.17514 64bit Unicode

------------
DxDiag Notes
------------
Display Tab 1: No problems found.
Sound Tab 1: No problems found.
Sound Tab 2: No problems found.
Input Tab: No problems found.

--------------------
DirectX Debug Levels
--------------------
Direct3D: 0/4 (retail)
DirectDraw: 0/4 (retail)
DirectInput: 0/5 (retail)
DirectMusic: 0/5 (retail)
DirectPlay: 0/9 (retail)
DirectSound: 0/5 (retail)
DirectShow: 0/6 (retail)

---------------
Display Devices
---------------
Card name: AMD Radeon HD 5700 Series
Manufacturer: Advanced Micro Devices, Inc.
Chip type: AMD Radeon Graphics Processor (0x68B8)
DAC type: Internal DAC(400MHz)
Device Key: Enum\PCI\VEN_1002&DEV_68B8&SUBSYS_E144174B&REV_00
Display Memory: 244 MB
Dedicated Memory: 501 MB
Shared Memory: 3838 MB
Current Mode: 1920 x 1080 (32 bit) (60Hz)
Monitor Name: 일반 PnP 모니터
Monitor Model: 22QD
Monitor Id: NEX220D
Native Mode: 1920 x 1080(p) (60.000Hz)
Output Type: DVI
Driver Name: aticfx64.dll,aticfx64.dll,aticfx64.dll,aticfx32,aticfx32,aticfx32,atiumd64.dll,atidxx64.dll,atidxx64.dll,atiumdag,atidxx32,atidxx32,atiumdva,atiumd6a.cap,atitmm64.dll
Driver File Version: 8.17.0010.1230 (English)
Driver Version: 13.152.1.8000
DDI Version: 11
Driver Model: WDDM 1.1
Driver Attributes: Final Retail
Driver Date/Size: 10/8/2013 23:01:02, 1237200 bytes
WHQL Logo'd: Yes
WHQL Date Stamp:
Device Identifier: {D7B71EE2-2BF8-11CF-3570-4EC1BEC2C535}
Vendor ID: 0x1002
Device ID: 0x68B8
SubSys ID: 0xE144174B
Revision ID: 0x0000
Driver Strong Name: oem9.inf:ATI.Mfg.NTamd64.6.1:ati2mtag_Evergreen:13.152.1.8000ci\ven_1002&dev_68b8
Rank Of Driver: 00E62001
Video Accel: ModeMPEG2_A ModeMPEG2_C
Deinterlace Caps: {6E8329FF-B642-418B-BCF0-BCB6591E255F}: Format(In/Out)=(YUY2,YUY2) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_PixelAdaptive
{335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(YUY2,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_BOBVerticalStretch
{5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(YUY2,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY
{6E8329FF-B642-418B-BCF0-BCB6591E255F}: Format(In/Out)=(UYVY,UYVY) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_PixelAdaptive
{335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(UYVY,UYVY) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_BOBVerticalStretch
{5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(UYVY,UYVY) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY
{5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(YV12,0x32315659) Frames(Prev/Fwd/Back)=(0,0,0) Caps=
{3C5323C1-6FB7-44F5-9081-056BF2EE449D}: Format(In/Out)=(NV12,0x3231564e) Frames(Prev/Fwd/Back)=(0,0,2) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_PixelAdaptive
{552C0DAD-CCBC-420B-83C8-74943CF9F1A6}: Format(In/Out)=(NV12,0x3231564e) Frames(Prev/Fwd/Back)=(0,0,2) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_PixelAdaptive
{6E8329FF-B642-418B-BCF0-BCB6591E255F}: Format(In/Out)=(NV12,0x3231564e) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_PixelAdaptive
{335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(NV12,0x3231564e) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_BOBVerticalStretch
{5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(NV12,0x3231564e) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY
{5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(IMC1,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps=
{5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(IMC2,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps=
{5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(IMC3,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps=
{5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(IMC4,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps=
{5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(S340,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps=
{5A54A0C9-C7EC-4BD9-8EDE-F3C75DC4393B}: Format(In/Out)=(S342,UNKNOWN) Frames(Prev/Fwd/Back)=(0,0,0) Caps=
D3D9 Overlay: Not Supported
DXVA-HD: Not Supported
DDraw Status: Enabled
D3D Status: Enabled
AGP Status: Enabled

-------------
Sound Devices
-------------
Description: 스피커(Realtek High Definition Audio)
Default Sound Playback: Yes
Default Voice Playback: Yes
Hardware ID: HDAUDIO\FUNC_01&VEN_10EC&DEV_0888&SUBSYS_1458A002&REV_1000
Manufacturer ID: 1
Product ID: 100
Type: WDM
Driver Name: RTKVHD64.sys
Driver Version: 6.00.0001.6873 (English)
Driver Attributes: Final Retail
WHQL Logo'd: Yes
Date and Size: 3/29/2013 21:42:42, 3379272 bytes
Other Files:
Driver Provider: Realtek Semiconductor Corp.
HW Accel Level: Basic
Cap Flags: 0xF1F
Min/Max Sample Rate: 100, 200000
Static/Strm HW Mix Bufs: 1, 0
Static/Strm HW 3D Bufs: 0, 0
HW Memory: 0
Voice Management: No
EAX(tm) 2.0 Listen/Src: No, No
I3DL2(tm) Listen/Src: No, No
Sensaura(tm) ZoomFX(tm): No

Description: Realtek Digital Output(Realtek High Definition Audio)
Default Sound Playback: No
Default Voice Playback: No
Hardware ID: HDAUDIO\FUNC_01&VEN_10EC&DEV_0888&SUBSYS_1458A002&REV_1000
Manufacturer ID: 1
Product ID: 100
Type: WDM
Driver Name: RTKVHD64.sys
Driver Version: 6.00.0001.6873 (English)
Driver Attributes: Final Retail
WHQL Logo'd: Yes
Date and Size: 3/29/2013 21:42:42, 3379272 bytes
Other Files:
Driver Provider: Realtek Semiconductor Corp.
HW Accel Level: Basic
Cap Flags: 0xF1F
Min/Max Sample Rate: 100, 200000
Static/Strm HW Mix Bufs: 1, 0
Static/Strm HW 3D Bufs: 0, 0
HW Memory: 0
Voice Management: No
EAX(tm) 2.0 Listen/Src: No, No
I3DL2(tm) Listen/Src: No, No
Sensaura(tm) ZoomFX(tm): No



[AndrewT]

If you click OK on that message, can you then play the game?

Please post your CK2 settings.txt and system.log files here. Also open setup.log, search for "checksum", and paste that line only in here.



[jti0219]

No, I can't paly CK2 after clicking message.

Setting.txt

gui=
{
language=l_english
}
graphics=
{
size=
{
x=1920
y=1080
}

refreshRate=0
fullScreen=yes
shadows=no
shadowSize=2048
multi_sampling=0
anisotropic_filtering=0
gamma=50.000000
}
sound_fx_volume=100.000000
music_volume=100.000000
scroll_speed=50.000000
camera_rotation_speed=50.000000
zoom_speed=50.000000
mouse_speed=50.000000
master_volume=100.000000
ambient_volume=50.000000
mapRenderingOptions=
{
draw_terrain=yes
draw_water=yes
draw_borders=yes
draw_trees=yes
draw_rivers=yes
draw_postfx=yes
draw_sky=yes
draw_bloom=no
draw_tooltips=yes
draw_hires_terrain=no
draw_citysprawl=yes
}
camera_speed=50.000000
camera_tilt=100.000000
centered_zoom_in=yes
lastplayer=""
lasthost=""
serveradress="diplomacy.valkyrienet.com"
autosave="YEARLY"
difficulty="NORMAL"
outliner=
{
1 2 3 4 5 6 7 9 }
outliner_open=no
windowmovetime=0.200000
disable_wikipedia_links=no
nudge_allowed=no
dont_track_data=no
has_made_data_tracking_choice=no
hints=yes
old_gods_pagan_hint_forced=no
old_gods_non_pagan_hint_forced=no
autosaves_to_keep=0
low_res_textures=no
force_pow2_textures=no

system.log

[systemsettings.cpp:203]: System memory: 0MB
[systemsettings.cpp:205]: CPU speed: 3214MHz
[systemsettings.cpp:212]: Number of processors: 4
[systemsettings.cpp:223]: CPU type: x86
[systemsettings.cpp:255]: OS: Unknown Service Pack 1 Build: 7601
[gfx_settings.cpp:22]: Loading settings for adapter 0, fullscreen=1, multisample=15
[gfx_settings.cpp:50]: Graphic Adapters:
[gfx_settings.cpp:55]: 0: AMD Radeon HD 5700 Series
[gfx_settings.cpp:69]: Using Adapter [0] to check for multi-sampling support:
[gfx_settings.cpp:80]: 2 samples supported.
[gfx_settings.cpp:80]: 4 samples supported.
[gfx_settings.cpp:80]: 8 samples supported.
[gfx_settings.cpp:95]: Using Adapter [0]:
[gfx_settings.cpp:101]: Succeeded to create a device [D3DCREATE_HARDWARE_VERTEXPROCESSING].
[gfx_settings.cpp:145]: Graphics device: AMD Radeon HD 5700 Series
[gfx_settings.cpp:146]: Graphics driver: aticfx32.dll
[gfx_settings.cpp:147]: Driver version: 1230
[gfx_settings.cpp:162]:


Dumping all gfx info:
DeviceIdentifier: {D7B71EE2-2BF8-11CF-3570-4EC1BEC2C535}
VendorId: 4098
DeviceId: 26808
SubSysId: -515631285
Revision: 0
DriverVersion.HighPart: 524305
DriverVersion.LowPart: 656590


[gfx_settings.cpp:182]: Instancing supported.
[gfx_settings.cpp:197]: Video memory amount: 244MB
[gfx_settings.cpp:198]: MaxSimultaneousTextures: 8
[gfx_settings.cpp:199]: MaxVertexBlendMatrices: 4
[gfx_settings.cpp:200]: MaxVertexBlendMatrixIndex: 8
[gfx_settings.cpp:201]: MaxSimultaneousTextures: 8
[gfx_settings.cpp:202]: MaxTextureBlendStages: 8
[gfx_settings.cpp:203]: Support for Anisotropic filtering found.
[gfx_settings.cpp:206]: Max Anisotropic filtering: 16
[gfx_settings.cpp:207]: Anisotropic filtering set to: 0
[gfx_settings.cpp:211]: Vertex Shader version: 3.0
[gfx_settings.cpp:216]: Pixel Shader version: 3.0
[main.cpp:484]: The graphics card detected does not have 512MB of video memory.
Crusader Kings II require at least 512MB of video memory to work properly.
[main.cpp:499]: CK2 Version Aug 16 2013 : 11:48:54
[main.cpp:500]: Commandline:
[internationalizedtext.cpp:1234]: Create table
[internationalizedtext.cpp:1236]: Create text database
[main.cpp:527]: Text database created
[main.cpp:545]: Creating application...

um.....setup.log file is empty. I can't find a "checksum".



[AndrewT]

Something weird is happening in your video system:

Display Memory: 244 MB
Dedicated Memory: 501 MB
Shared Memory: 3838 MB

This just makes no sense, and I've never seen it before. Can you run dxdiag again please, but click on the "run dxdiag64" button in it. The write out a new dxdiag.txt and post it here please (only from the top down to [sound devices] thanks).

The other thing I notice is your video driver is newer than the latest official release, which was in September. Did you install a beta version, and if so, why?

What I suggest is that you manually uninstall your video driver, and reboot - it will use the default Microsoft driver. Then install the latest official driver from AMD
http://support.amd.com/en-us/download/desktop?os=Windows+7+-+64
